PCB assembly Capabilities
•One-Stop & turnkey Fabrication and Assembly
•Multiple PCB Assembly Services
•Flexible Volume Assembly Alternatives
•Components Sourcing
•Prototype PCB Assembly
•Box Build Assembly
•100% AOI test and X-ray test for BGA
•Function test as custom& programming
SMT Assembly Capabilities
We offer Surface Mount (SMT), Thru-Hole (THT) and hybrid of both. We also offer single or double-sided placement.
Our production facilities can assemble the following SMT types:
Ball Grid Array (BGA)
Ultra-Fine Ball Grid Array (uBGA)
Quad Flat Pack No-Lead (QFN)
Quad Flat Package (QFP)
Small Outline Integrated Circuit (SOIC)
Plastic Leaded Chip Carrier (PLCC)
Package-On-Package (PoP)
Small Chip Packages (pitch of 0.2 mm)
PCBA Testing Procedures
•Visual inspection: general quality check.
•X-ray Inspection: checks for BGAs, QFN and bare circuit boards.
•AOI Testing: checks for solder paste, 0201 components, missing components and polarity.
•Function test as custom
X-Ray For BGA
Automated X-ray inspection systems are able to monitor a variety of aspects of a printed circuit board assembly production. It can not only check the solder joints that are under packages such as BGAs, CSPs and flip chips
Automated X-Ray advantages :
• Some defects can be found in the early stage of printed circuit board assembly process;
• It is contributive to the cost reduction of defects;
• It stops defects from flooding among remaining PCB assembly or even clients' practical projects.
X-ray Inspection:
Automated X-ray inspection, not only are 2D techniques available, but machines utilizing 3D technology are available and give significant improvements in performance.

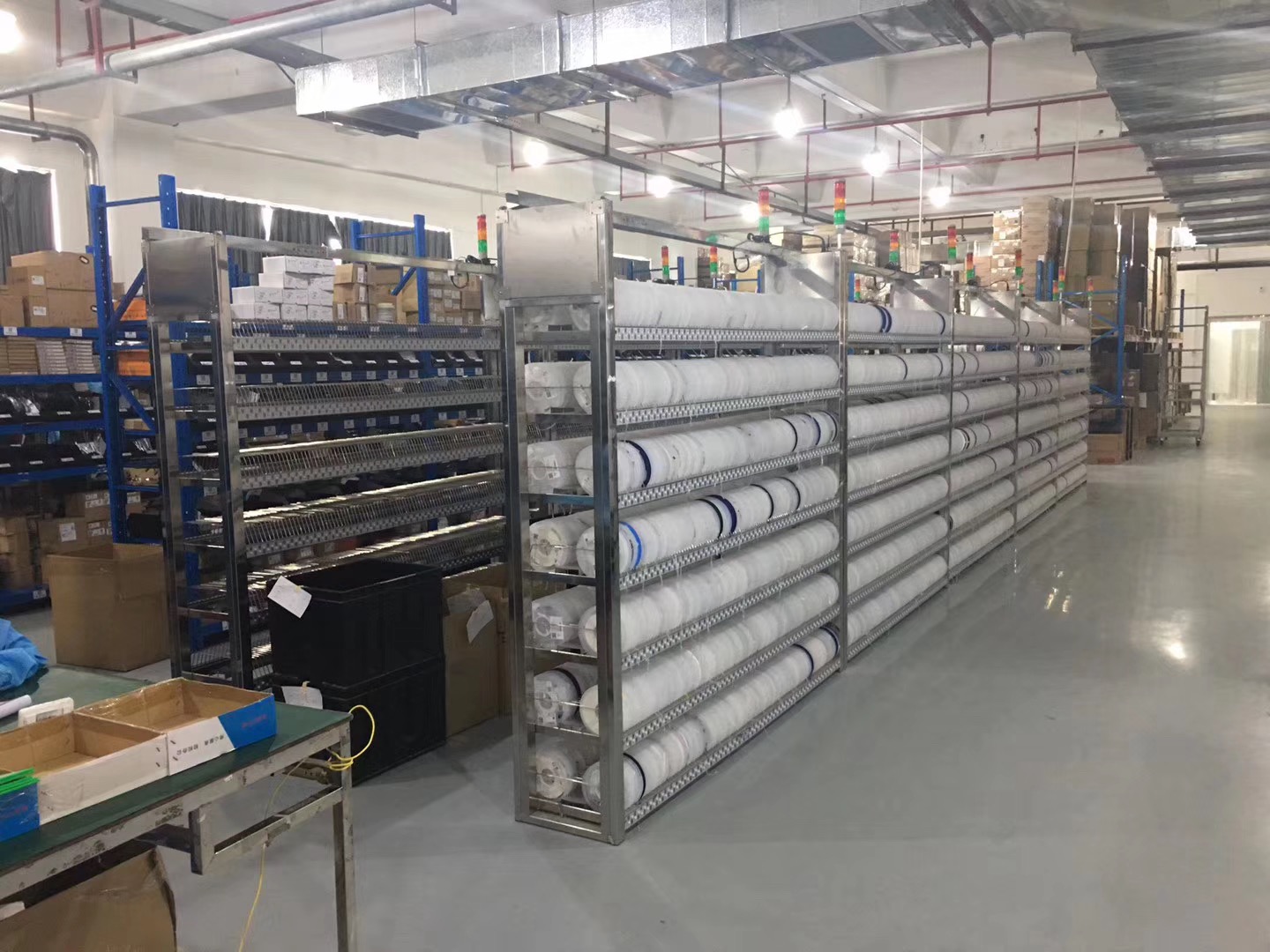

Components Sourcing:
We do provide comprehensive components sourcing service to improve our assembly service.
There are 4 flexible options for you to use our components sourcing service:
1) We supply all the components which will be purchased from authorized and reliable distributors.
Attention: No substitutes will be used without getting your approval.
2.)We purchase all components from distributors you recommend
3)Kitted or Consigned: You supply all the components to us.
4)Combo: You supply some components and we supply the rest.
